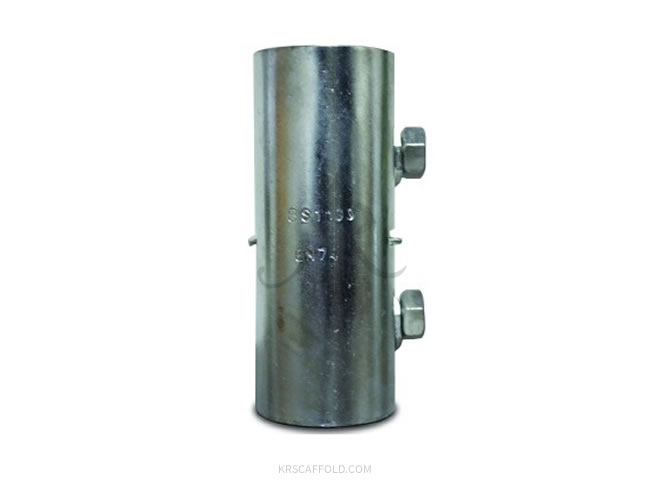

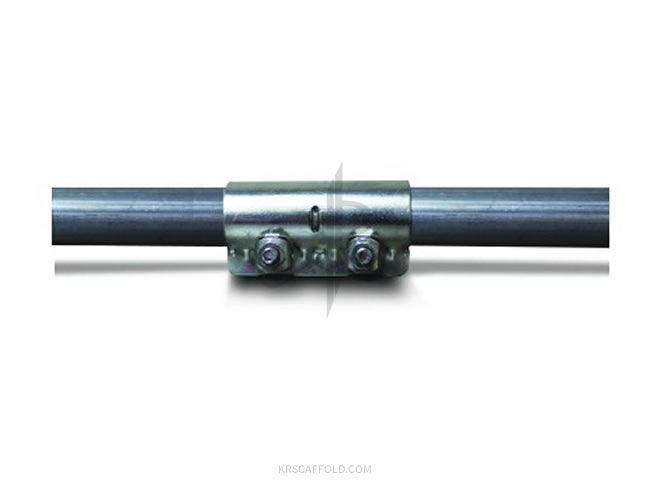

Used for the external connection of two tubes end-to-end joints or either standards, ledgers or bracing. Provides a more secure joint than the Joint Pin.

NEED ASSISTANCE?
DOWNLOAD

Products Brochure For Detailed Information

FEATURES

Compliance Standard:
Conforms to EN74-1 Class B / AS1576.2-91 standard.
& MS 1462-2-3 :2011 PPS CIDB Requirement.
Complete slip and load testing in operation and International standard approved.
Mill Cert:Provided,100% proof tested for complete safety.
Embossed: Brand, Standard,Batch No/Year, Standard & Manufacturer no
Packing option:25pcs / bag
Packed in polypropylene woven bag.
Stacked on steel pallets at no extra cost.
Special Service:
i. Customization manufacturing available.
ii.Traceability coding on each product.

SPECIFICATION

Weight: 1.1kg
Diameter: Fits with our industry standard 48.3mm tube.
Coating : Fully Zinc plated, Gold Passivated or powder coated.
Material Grade: S235GT Carbon Steel Q235,
Pressed Steel.

ENQUIRY

Select the quantity of product you require and click “Add to Quote” button at the bottom.”View Cart” link will appear for you to see the quote for your selected products and quantity. You can make changes to the quantity and products of your selection before sending your enquiry.

QtyProductCodeWeightRemarks
x Sleeve Coupler KR-SC 1.1
