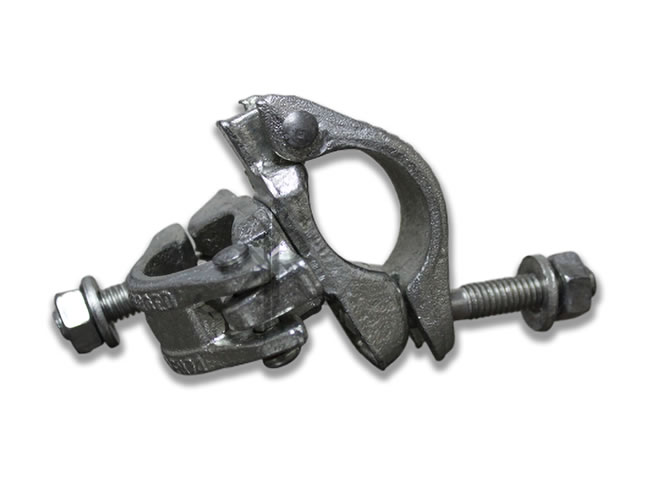

• Use for the connection of two tubes at right-angles.
  • Used for connecting two 48.3mm tubes at right angles.

Products Brochure For Detailed Information


Compliance Standard:
Conforms to BS1139 / EN74 Class A & B / EN74-1 Class B / AS1576.2 standard
& MS 1462-2-3 :2011 PPS CIDB Requirement.
Complete slip and load testing in operation and International standard approved.
Mill Cert: Provided,100% proof tested for complete safety
Embossed: Brand, Standard,Batch No/Year, Standard & Manufacturer no
Packing option:
25pcs / bag.
Packed in polypropylene woven bag.
Stacked on steel pallets at no extra cost.
Special Service:
i. Customization manufacturing available
ii.Traceability coding on each product


Weight: 0.95kg
Diameter: Fits with our industry standard 48.3mm tube.
Coating : Fully Zinc plated,Hot dip galvanized or powder coated,
Material Grade: S235GT Carbon Steel Q235


Select the quantity of product you require and click “Add to Quote” button at the bottom.”View Cart” link will appear for you to see the quote for your selected products and quantity. You can make changes to the quantity and products of your selection before sending your enquiry.

Qty Product Code Weight Remarks
x Drop Forged Double Coupler KR-DFDC 0.95
