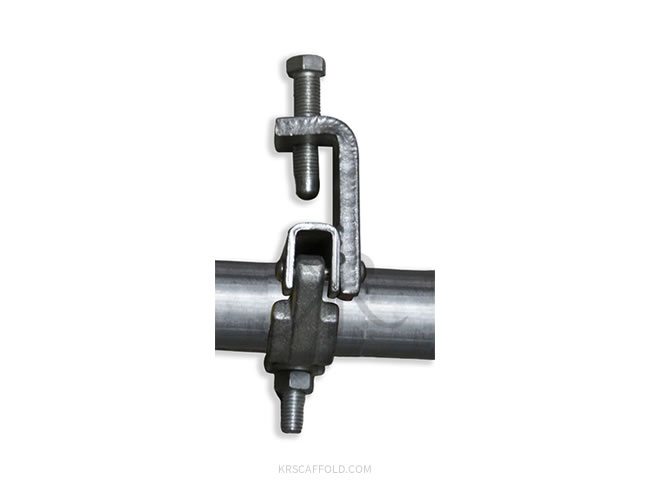

Used in pairs for right angle clamping of 48.3mm O.D. scaffold tubes to steel I-Beam flanges up to 45mm thick.


Products Brochure For Detailed Information


Compliance Standard:
Conforms to AS/NZS 1576.2 : 2009 standard.
Complete slip and load testing in operation and International standard approved.
Mill Cert:Provided,100% proof tested for complete safety.
Embossed: Brand, Standard,Batch No/Year, Standard & Manufacturer no
Packing option:25pcs / bag
Packed in polypropylene woven bag.
Stacked on steel pallets at no extra cost.
Special Service:
i. Customization manufacturing available.
ii.Traceability coding on each product.


Weight: 1.50kg
Diameter: Fits with our industry standard 48.3mm tube.
Coating : Fully Zinc plated,Hot dip galvanized or powder coated,
Material Grade: Carbon Steel Q235


Select the quantity of product you require and click “Add to Quote” button at the bottom.”View Cart” link will appear for you to see the quote for your selected products and quantity. You can make changes to the quantity and products of your selection before sending your enquiry.

Qty Product Code Weight Remarks
x Beam Clamp Fixed KR-BMFX 1.50
