Compliance Standard:
Heavy Duty Platform Trolley Ladder.
– SIRIM and complied to BS EN 131 Standard.
Mill Cert:Provided.
Safety Instruction: Each Ladder have labelled safety instruction & Caution stickers.
Packing option:Individual polybag.
Special Service:
i. Customization manufacturing available.
ii.Traceability coding on each product.

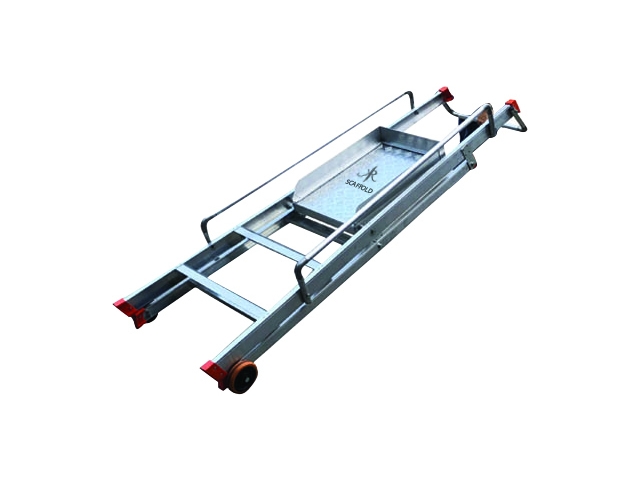

Heavy duty foldable aluminium platform trolley ladder.
Equipped with body barrier, side hand rails and toe board for extra safety and comfort of use.
180 kg maximum static vertical load capacity.

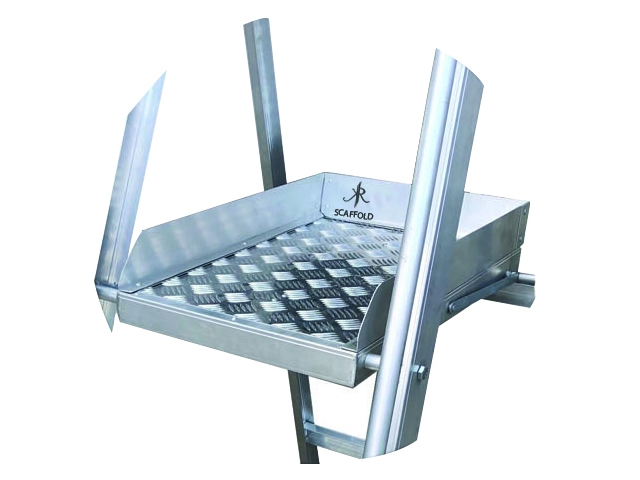

Wide 400 mm x 600 mm checker plate platform and 1,000 mm tall work zone allows you to work facing any directions.

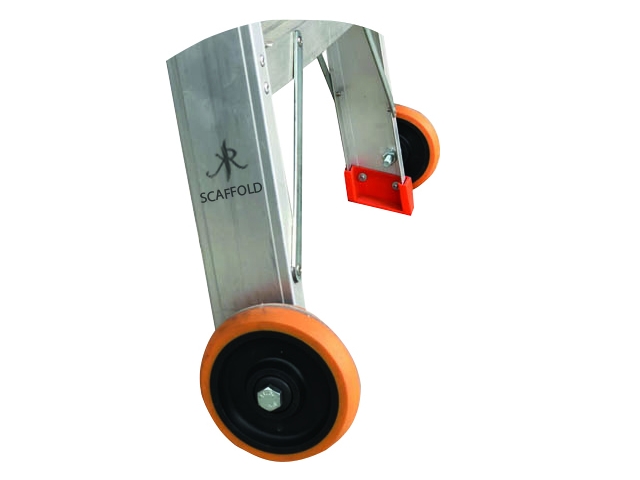

Installed with 5 inch heavy duty castor wheel for ease of transport.
Available from 3-steps to 10-steps.


Select the quantity of product you require and click “Add to Quote” button at the bottom.”View Cart” link will appear for you to see the quote for your selected products and quantity. You can make changes to the quantity and products of your selection before sending your enquiry.

Qty Product Code Weight Remarks
x Heavy Duty Platform Trolley Ladder-4.0m/10ft KR-PT-40/10 30
x Heavy Duty Platform Trolley Ladder-3.7m/09ft KR-PT-37/09 27.5
x Heavy Duty Platform Trolley Ladder-3.4m/08ft KR-PT-34/08 25
x Heavy Duty Platform Trolley Ladder-3.1m/07ft KR-PT-31/07 22.5
x Heavy Duty Platform Trolley Ladder-2.8m/06ft KR-PT-28/06 20.5
x Heavy Duty Platform Trolley Ladder-2.5m/05ft KR-PT-25/05 18.5
x Heavy Duty Platform Trolley Ladder-2.2m/04ft KR-PT-22/04 16.5
x Heavy Duty Platform Trolley Ladder-1.9m/03ft KR-PT-19/03 14.5
